Quality Assurance
Precision Tools That Power Our Quality Promise
At VmakeU Global, our commitment to excellence is supported by state-of-the-art inspection systems. Each quality control instrument in our facility ensures dimensional accuracy, consistency, and conformance to the highest global standards.

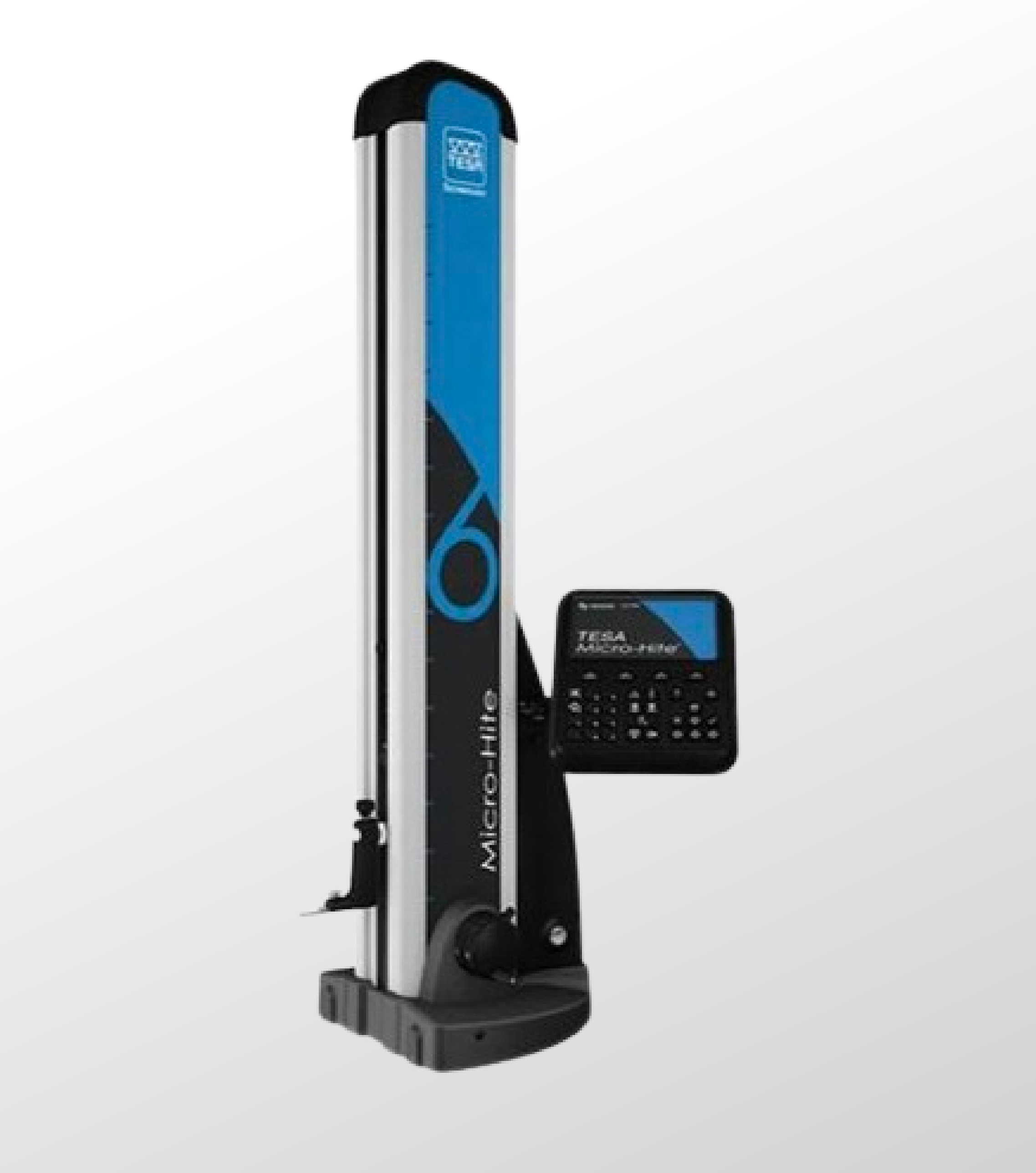

Height Masters
The Height Master is a precision measuring instrument used to determine the vertical dimensions of components with extreme accuracy. It plays a vital role in calibration, dimensional inspection, and verifying part heights and depths during production.
Applications
- Measuring part heights, steps, and grooves
- Setting and calibrating gauges and instruments
- Inspection of mechanical assemblies with tight tolerance requirements
Specifications
- Measuring Range: 0 – 600 mm
- Resolution: 0.001 mm
- Accuracy: ±(2.5 + L/300) µm
- Display Type: Digital / Vernier (depending on model)
- Material: Granite base for vibration-free stability
- Usage: Manual and semi-automatic measurement setups
- Environment: Temperature-controlled quality lab for consistent results

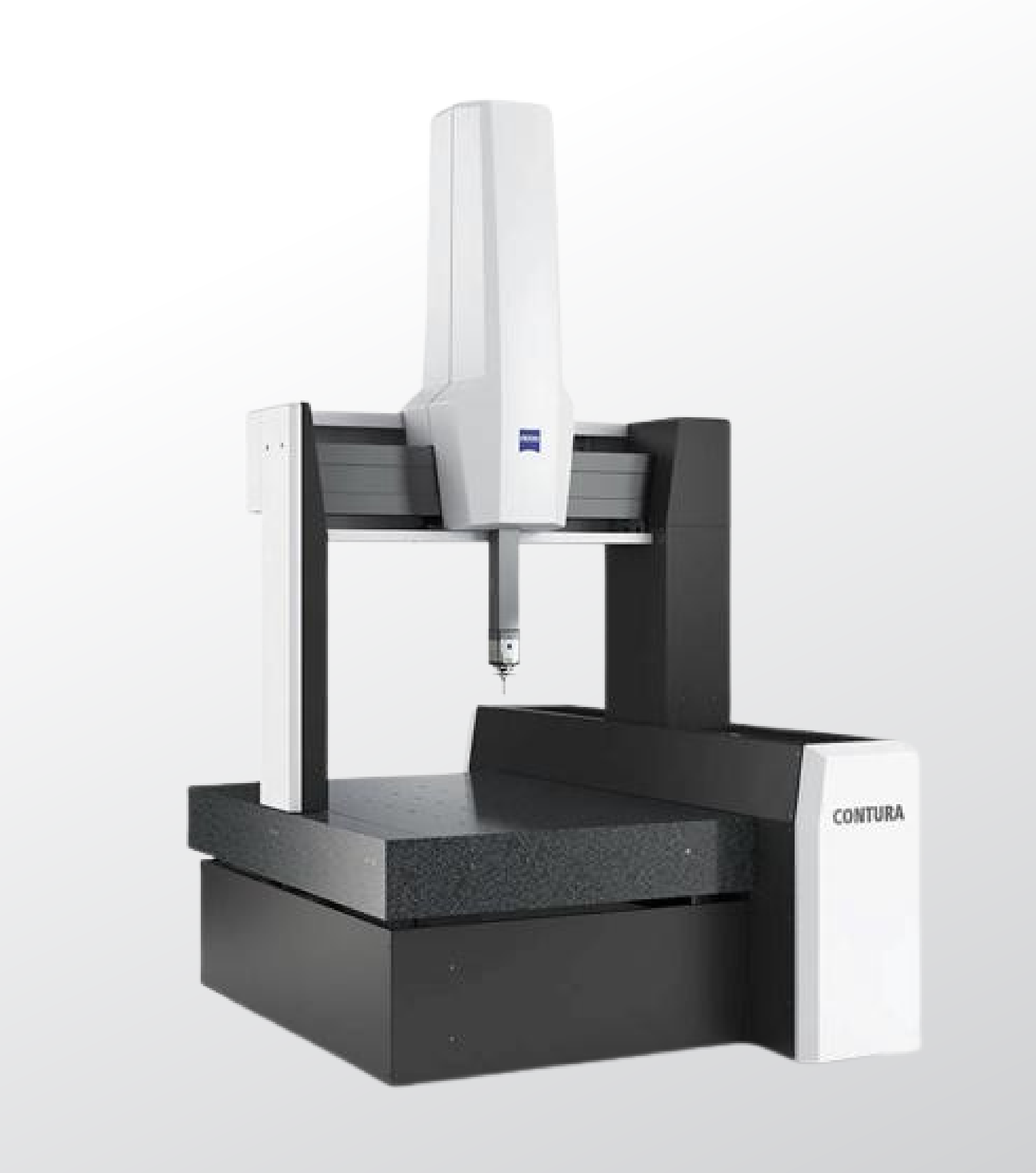

Co-ordinate Measuring Machine (CMM)
Our Co-ordinate Measuring Machine ensures dimensional validation of complex and critical components. It uses a high-precision probing system to measure geometric features in 3D, ensuring that every product conforms exactly to its CAD design.
Applications
- 3D dimensional inspection of machined and fabricated parts
- 3D dimensional inspection of machined and fabricated parts
- Comparison of actual parts with CAD models
- Reverse engineering and first article inspection
Specifications
- Make: Mitutoyo
- Measuring Range: 400 × 400 × 300 mm
- Accuracy: ± (2.0 + L/250) µm
- Probe Type: Touch-trigger probe system
- Controller: CNC / Manual (depending on operation mode)
- Software: Mitutoyo MCOSMOS / equivalent CAD interface
- Temperature Stability: Controlled between 20 ± 1°C for precise results

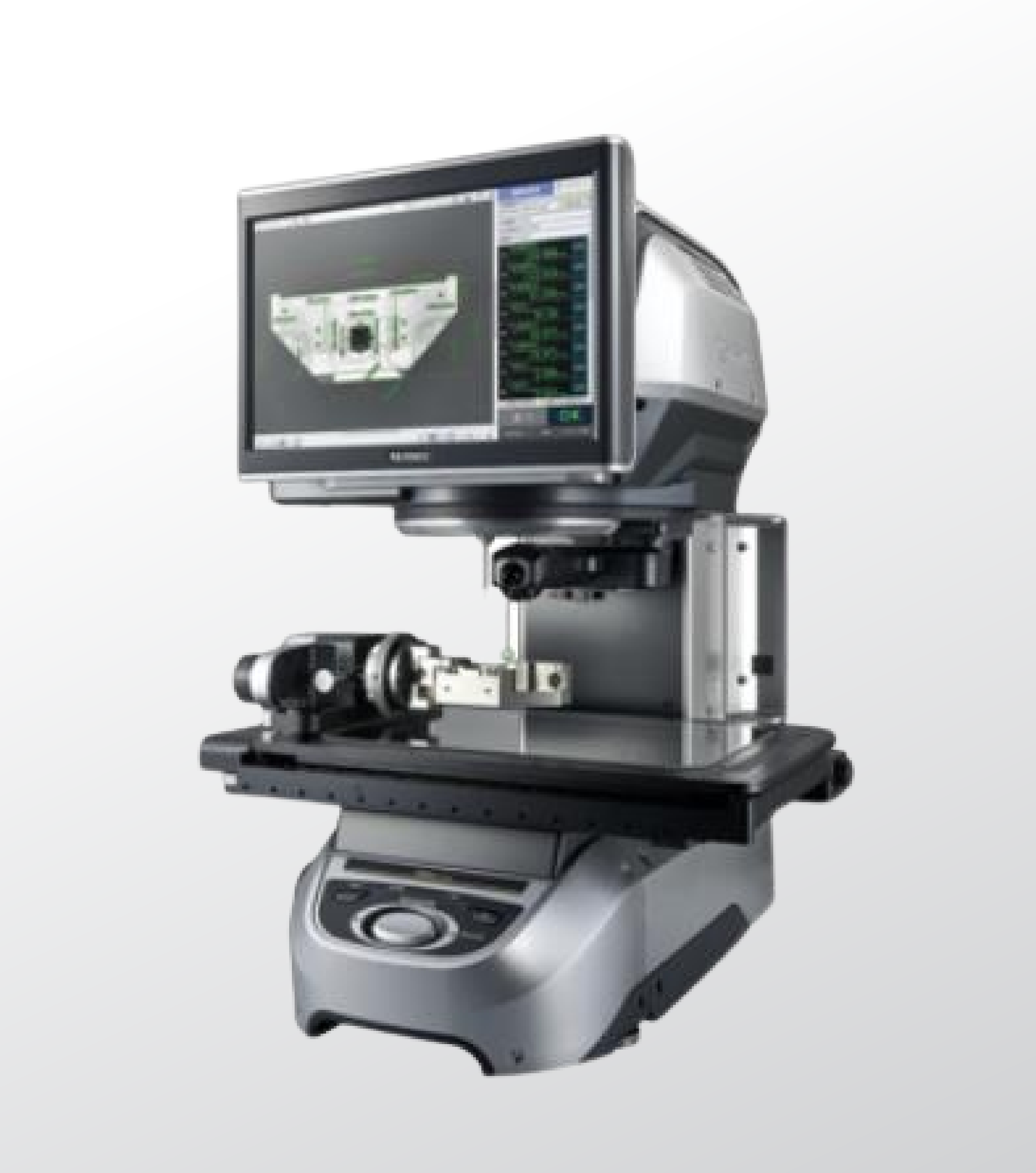

Video Measuring Machine (VMM)
The Video Measuring Machine provides non-contact dimensional measurement for delicate, complex, and miniature components. It uses high-resolution optics and digital image processing to measure dimensions without causing surface damage.
Applications
- Fine measurement of sheet metal parts, connectors, and electronic components
- Edge, angle, and contour analysis
- Batch inspection of small components
- Quality validation in precision fabrication and tooling
Specifications
- Measuring Range: 300 × 200 × 200 mm
- Resolution: 0.5 µm
- Accuracy: ±2 µm
- Optics: High-resolution digital camera with adjustable zoom
- Lighting: Multi-angle LED ring illumination
- Software: Auto-measurement and reporting integration
- Operation: Semi-automatic with CNC stage control

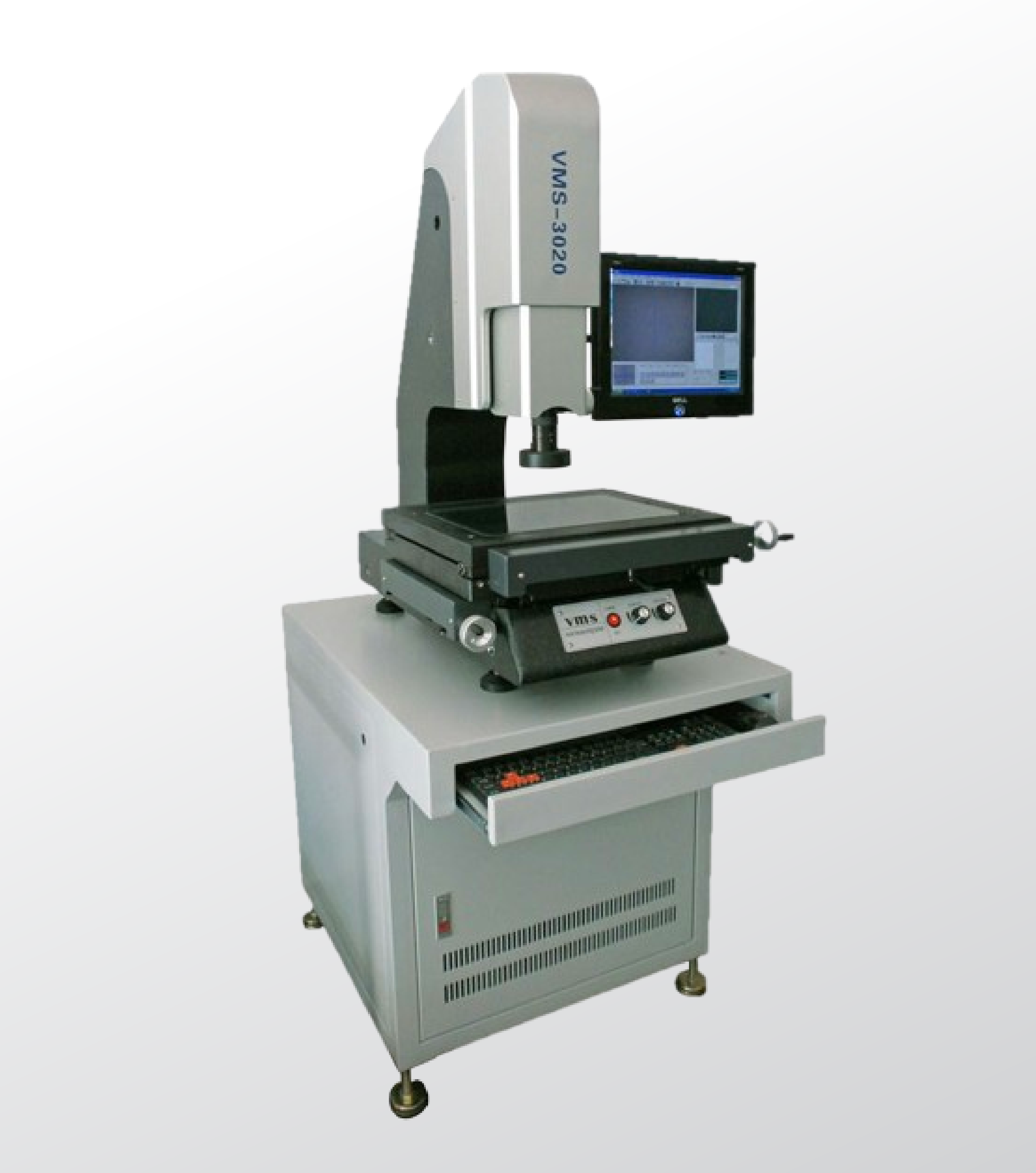

Video Measuring System (VMS)
The Video Measuring System enhances accuracy through advanced image recognition and data capture. It combines optical, video, and digital analysis to inspect complex profiles, edges, and contours in real time.
Applications
- Precision contour mapping and edge detection
- Measurement of flatness, parallelism, and concentricity
- Surface analysis and defect detection
- Automated inspection of repetitive production runs
Specifications
- Measuring Range: 400 × 300 × 200 mm
- Resolution: 0.1 µm digital readout
- Accuracy: ± (3 + L/200) µm
- Camera: High-speed CCD with 3D scanning capability
- Zoom Lens: 12X optical / 200X digital
- Software: 2D/3D measurement and data reporting
- Data Output: Compatible with CAD formats for analysis and traceability
